Short Path Distillation

Contact for pricing and more.

View Features Request Quote

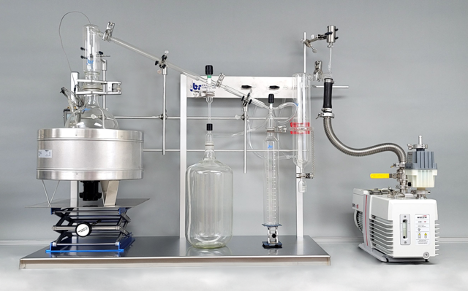

Short Path Distillation System

System Features

Included Components

  • Distillation column with silvered vacuum jacket
  • Heating/Stirring mantle prevents hot spots leading to isomerization/degradation
  • Insulating top minimizes heat input
  • Liquid temperature probe
  • Vapor temperature probes
  • Vacuum valves and sensors
  • Graduated receivers
  • Cold Trap for pump/sensor protection
  • All joints o-ring sealed (vacuum tight, no grease)

Optional

  • Vacuum Pump
  • Circulating Bath

Advantages

  • Upgradeability with standard components
  • Turn-key solutions possible
  • Base + Lab Stand + Clamps included (Lab Jacks optional)
  • Simple Operation
  • Maintain system vacuum while swapping out collected fractions

Technical Specifications

Ultimate Vacuum 0.01 mmHg
Pressure Sensor 0.01 - 100 mmHg
Distillation Rate ~1 L/hr
Avg Distillation Temperature 160 - 190 °C
Boiling Flask Sizes 2L / 5L / 12L
Collection 250mL / 500mL / 1L / 9L
Vacuum Pump Recommended Edwards RV 12 or Welch CRV Pro 16
Circulating Bath -20°C to 100°C

Training Available

Want to learn how to distill hemp or cannabis extracts? We offer private on-your-site training as well as group classes.
